Configuring DHCP Server

The Dynamic Host Configuration Protocol (DHCP) is a standardized network protocol used on IP networks. The DHCP is controlled by the Policy Server/Sensor that dynamically distributes network configuration parameters, such as IP addresses. You will be able to configure and manage the Built-In DHCP Options and configure Policy Server/Sensor to utilize the three DHCP Services. (Local, Remote, and Local & Remote)

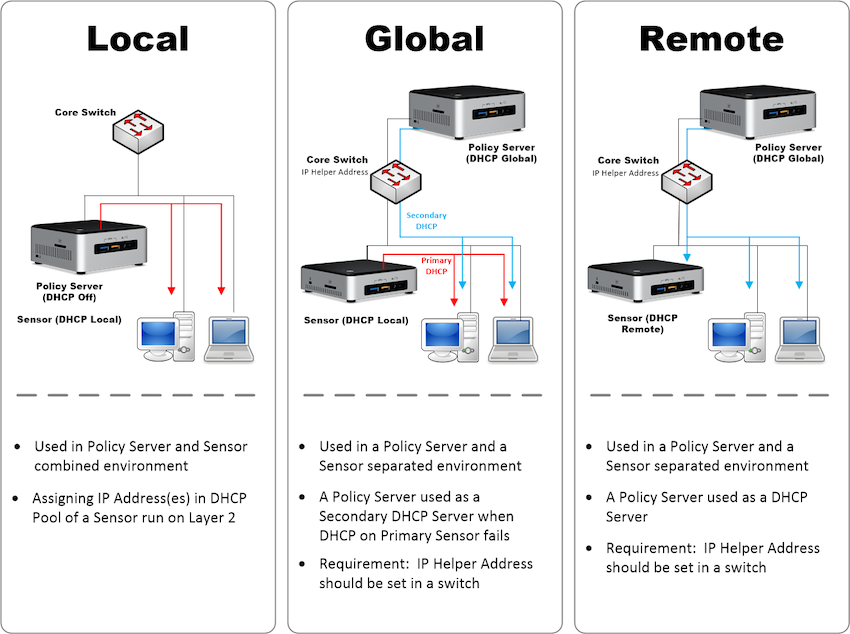

Topics	Description	etc
Local	Provides DHCP service for the network sensor's management scope
Remote	The network sensor does not provide DHCP services. the remote server provides DHCP services.	Switch requires DHCP Helper Address setting
Local & Remote	Provides DHCP service to the network sensor's management scope and Local IP band for remote network sensors

Switches with DHCP Snooping or DAI

When the Network Sensor or Policy Server provides DHCP service (Local or Local & Remote) and the switch the sensor connects to uses the following security features, configure the port connected to the sensor as a trusted port.

Switch Feature	If the Sensor Port Is Not Trusted
DHCP Snooping	The switch drops DHCP server replies (OFFER, ACK) that arrive on untrusted ports, so endpoints cannot obtain an IP address.
DAI (Dynamic ARP Inspection)	The switch drops ARP packets that do not match the DHCP Snooping bindings. DHCP replies are not affected, but the sensor's ARP packets are dropped, so ARP Enforcement may not work.

The following example configures the port connected to the sensor (Gi1/0/1) as a trusted port on a Cisco switch.

Switch> enable
Switch# configure terminal
Switch(config)# interface gi1/0/1
Switch(config-if)# ip dhcp snooping trust
Switch(config-if)# ip arp inspection trust

Switches from other vendors provide an equivalent trusted port setting. Commands differ by vendor and software version, so refer to the vendor's documentation.

Note

Apply the trusted port setting only to the port connected to the sensor. If you trust a port connected to endpoints, the switch no longer protects that port against rogue DHCP servers and ARP spoofing.

To Configure DHCP Services To Network Sensor In Operation

1. Go to System in the top panel

2. Go to System > Sensor in the left System Management panel

3. Find and click IP/Name of Network Sensor

4. Find and click Settings tab

5. Click Sensor Settings

6. Find DHCP section and select On in DHCP Service

7. Based off of your network environment, choose one of the Service Target below

8. Find Node IP Pool section and reserve an IP range of IP Addresses (e.g.192.168.10.2-100)

9. Find Lease Duration and define when an IP expires (Minutes, Hours, Days, or Months)

10. All other settings are optional:

    • DNS Server

    • Domain Name

    • WINS Server

    • NTP Server

    • Sensor IP Pool

    • IP Assignment-Prevention Target

    • DHCP Option

    • Static DHCP

11. Click Update

DHCP service only on policy server

This section is used in a remote environment in which the network environment is a DHCP environment, the principal policy Server is a DHCP server, and the network sensor is a remote operating environment.

1. Go to System in the top panel

2. On the right screen, click the IP of the policy server.

3. On the Sensors tab, click Sensor Settings.

4. In the DHCP entry, set it as follows:

   • DHCP Service: On

   • Service Target: Local & Remote

   • Node IP Pool: Remote DHCP Set Network Sensor IP Scope

   • Set other custom settings as well.

5. Go to the left panel System > System Defaults > Network Sensor.

6. On the sensor setup screen, set it as below.

   • DHCP Service: On

   • Service Target: Remote

     • The current sensor does not provide DHCP server functionality, but provides DHCP services from other servers.

7. Click Update
